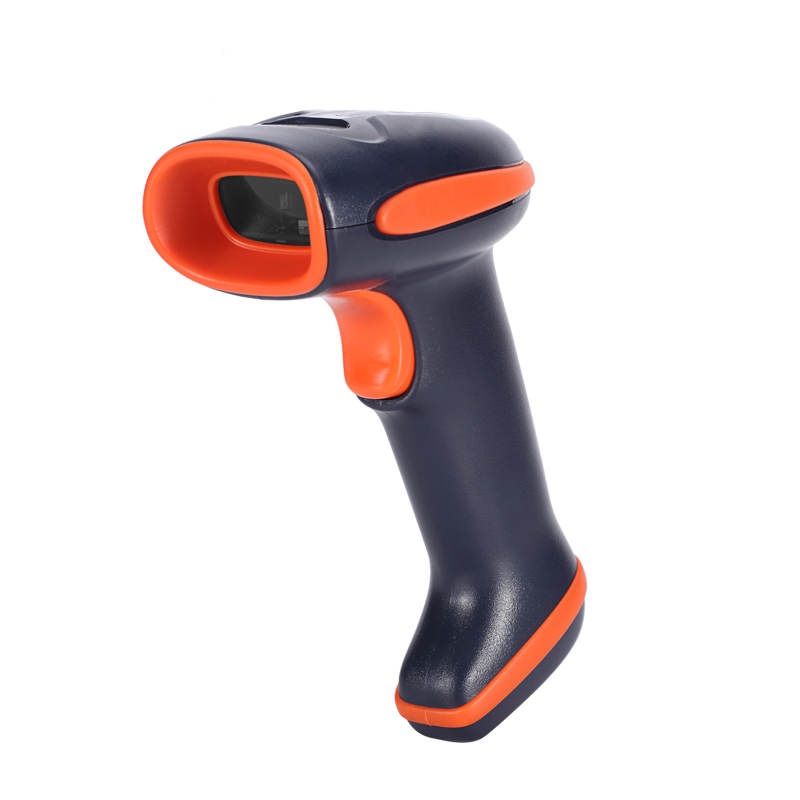

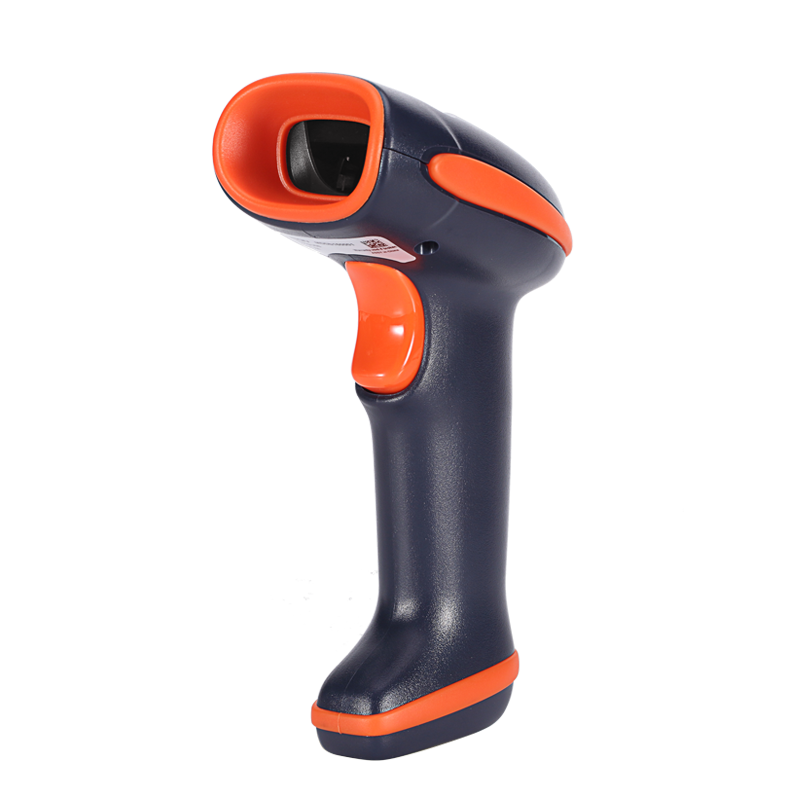

Winson WNL-7000g 1D Portable Bar Code Scanner Stock Barcode Reader

Winson WNL-7000g 1D Portable Bar Code Scanner Stock Barcode Reader

Support 1d barcode,applies to logistics&express, warehouse , factory and so on.
Description Specification Review
Description


Highlights
1.Winson WNL-7000g Industrial Laser Barcode Scanner 1D Portable Bar Code Reader Android.
2.Support 1d barcode,applies to logistics&express, warehouse , factory and so on.
3.Support add a prefix/suffix, delete the last 4 characters, interlaced upload data.

4.Support multiple working mode,such as continuous reading or single reading and so on.
.




Product Details

► Winson barcode scanners are compatible with almost all common systems, as Windows, Android, Mac OS, IOS, Linux etc.
► Winson barcode scanners support multiple keyboard language: USA, Germany, French, Italy, Spanish, Turkey, Belgium, Brazil Czech and so on.
► Support custom function: As add a prefix/suffix, delete the last 4 characters, interlaced upload data

► Support self-upgrade, as no limitation for Keyboard Cash.
► Can be adjusted the working mode of barcode scanner on the basis of your needs, as continuous reading or single reading, scan the same barcode or not, delay the time to upload data or not....
► Winson barcode scanners apply to registry office of the airport/train station, hospitals, warehouses, supermarkets, retail stores, libraries, catering, logistics, express delivery, and others.

► Support multi-barcodes, such as: EAN13, EAN8, UPC A, UPC E, CODABAR(NW-7), CODE 39, CODE 93, INTERLEAVED  2OF5, STANDARD 2OF5,MATRIX 2OF5, CODE 128, EAN/UCC 128, CODE 11, CHINESE POST.


   Click Here to Contact us »


Wireless Scanner          OEM Design
☞Certifications                 Product Guide
Industry News               Company News
Quality Control              ☞Exhibition Information
Specification
Specifications

PHYSICAL CHARACTERISTICS

Dimensions
108mm*71mm*185mm(L*W*H)
Weight
177.2g



ENVIRONMENTAL

Temp
-20°to 65°C / -4°to 149°F(operation)
-30°to 70°C /-22°to 158°F(storage)
Humidity
5%- 90% (operation) 5% - 90% (storage)
Ambient light
Fluorescent light 4,000 lx max , direct sun light 80,000 lx max , white light 4,000 lx max
Shock drop test
3m drop onto concrete surface
MBTF
30,000 hours except laser diode(10,000 hours) and except mirror scan unit(10,000 hours)



ELECTRICAL

Interface
USB HID KEYBOARD/USB VCP/RS-232/RS-485
Voltage requirement
DC 5V±10%
Current consumption
Max: 135mA



OPTICAL CHARACTERISTICS

Light source
650nm visible laser diode
Scan Method
Bi-directional



PERFORMANCE CHARACTERISTICS

Operating mode
Single read
Multiple read
Continuous read
Scan rate
100±20 scans/second
Decode angle
Pitch angle:±30°
Skew angle:±75°
Tilt angle:±40°
Curvature
R≥15 mm (EAN8),R≥20 mm (EAN13)(resolution=0.26mm,PCS=0.9)
Min .PCS value
>20%UPC/EAN 13(13mil)
Min.Resolution
SR:0127mm/5mil(PCS 0.9)
HD:0.08mm/3.2mil(PCS 0.9)
Error Rate
1/500W
Language
Multiple languages



SUPPORTED BARCODE SYMBOLOGIES

EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,
STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST
